Click to enlarge
The Viewpoint View Jobs page lets you view all your Moab jobs. This page displays all jobs in a summary (tile) view. You can also select one specific job tile to view its details. In the jobs tile view, you can use sorting options to quickly find what you're looking for (for more information, see Filtering and sorting).
Access the View Jobs page by navigating to View > Jobs.
For more information, see these sections:
Viewing job summaries in tile display

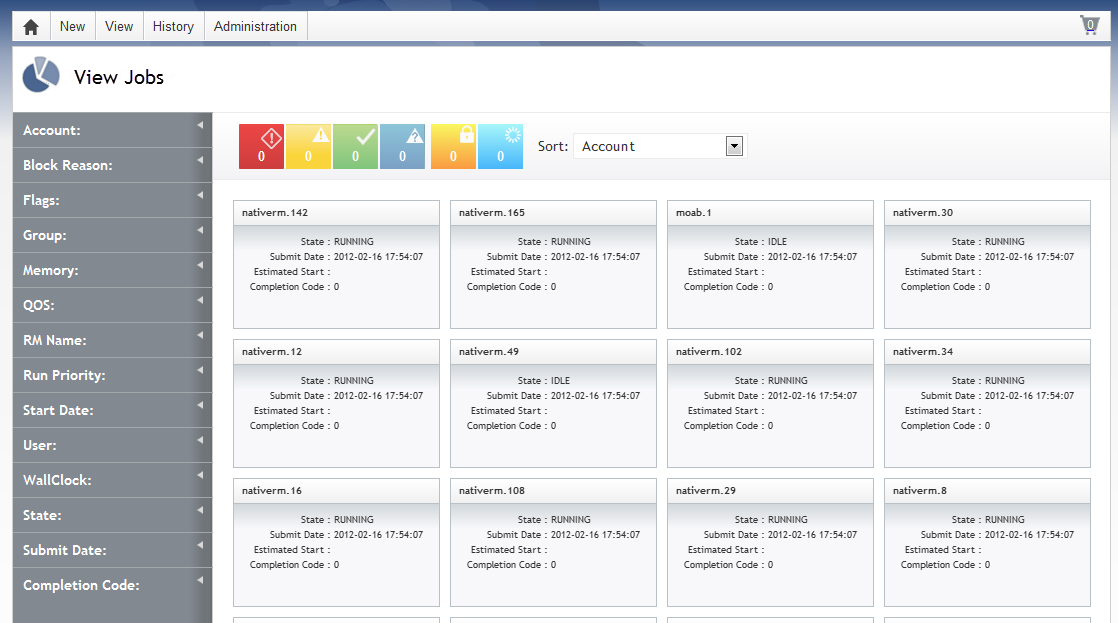

When you open the View Jobs page, tiles display representing each Moab job.
|
|
|
Click to enlarge |
Each tile contains a summary information about the job it represents, including the following:
| Field | Description |
|---|---|
| Name | Name of the job |
| Submit Date |
Date and time job was submitted For example: 2012-02-16 13:56:13 |
| Estimated Start | Estimated start date and time |
| Completion Code | Completion code |
Click any job tile to see its detail information. The details view contains all of the same content as the summary tile view and the following additional information:
| Field | Description |
|---|---|
| Account | Account used to create the job |
| Block Reason | Reason the job is blocked (if blocked) |
| Holds | List of holds on the job |
| Messages | Any messages associated with the job |
| QOS Requested | Requested Quality of Service for the job |
| Run Priority | Run priority of the job |
| Active Duration | How long the job has been active |
| Flags | Any flags that exist on the job |
| ID | Job ID |
| Queue | Name of the queue assigned to the job |
| Start Date | Date and time the job was started |
| User | User that submitted the job |
| Allocated Nodes | Nodes where the job will run |
| Completion Date | Date the job was completed |
| Group | Group under which the job is running |
| Memory | Amount of memory (in MB) requested for the job |
| QOS | Allocated Quality of Service for the job |
| RM Name | Resource manager name |
| State | State of the job (Running, Down, etc.) |
| Wall Clock | Amount of time allocated the job |
You can use the Filters tool to limit the jobs that display in the tile view, and you can sort the limits that do display by using the Sort tool (for more information, see Filtering and sorting).
This page has filtering and sorting options to help you find what you need and organize what you see. The Filters option includes a list of fields (for instance, Alias, Available Processors, and so forth) that you can use to filter which jobs display.
For example, if you wanted to display all jobs that were submitted on February 16, 2012, you can select 2012-02-16 from the Submit Date field in the list. Then only the jobs that were submitted on that day appear on the page.
To use the Filters list
The page is updated so that only the resource summary tiles that fit that field value display.
Also, the field value you selected is noted at the top of the Filters list.
).To sort resources
The resources will reorder to match your sort selection.
Related topics
