5.1.2.4 Nesting service templates

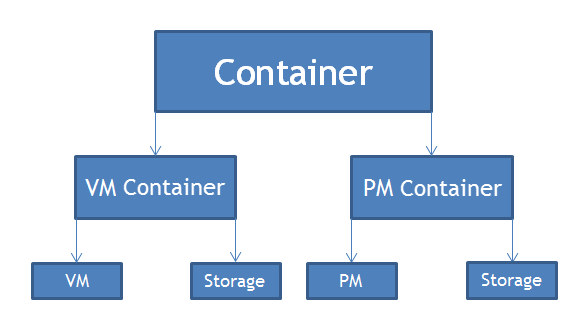

Service templates can contain other service templates. For instance, you might want to create a LAMP stack service including a virtual machine with storage to hold a web server, and a physical machine with storage to hold the corresponding database.

Image 5-1:

Click to enlarge

To create a nested service including both a virtual and physical machine with attached storage

  1. Create 4 service templates: a virtual machine template, a storage template to attach to the VM, a physical machine template, and a storage template to attach to the PM. For detailed instructions, see Creating/modifying service templates.
  2. Now, create a container for the VM template and its storage template. Fill out the general information requested for your service.
    1. Go to the Templates included tab.
      • Click the VM template and its storage template.

        • The rows darken.

      • Choose Include.

        • Both services appear in boxes below.

    2. Go to the Sequence tab.
      • Click the virtual machine template.

        • The box's outline turns blue.

      • Click the storage template.

        • An arrow appears between them.

    3. Go to the Summary tab to view the information configured on the Template properties tab, modification information, and the names of the virtual machine and storage template included. If you are satisfied with the template's settings, click Save template.
  3. Repeat step 2 to create another container for the physical machine and its storage.
  4. Once both containers have been created, create a large container for both the virtual machine and its storage and the physical machine and its storage. Fill out the general information requested for your service.
    1. Go to the Templates included tab.
      • Click the container template with the VM and the container template with the PM.

        • The rows darken.

      • Choose Include.

        • Both services appear in boxes below.

    2. Go to the Sequence tab.
      • Click the physical machine service.

        • The box's outline turns blue.

      • Click the virtual machine service.

        • An arrow appears between them.

    3. Go to the Summary tab to view a summary of the new container. If you are satisfied, click the Save template button.
